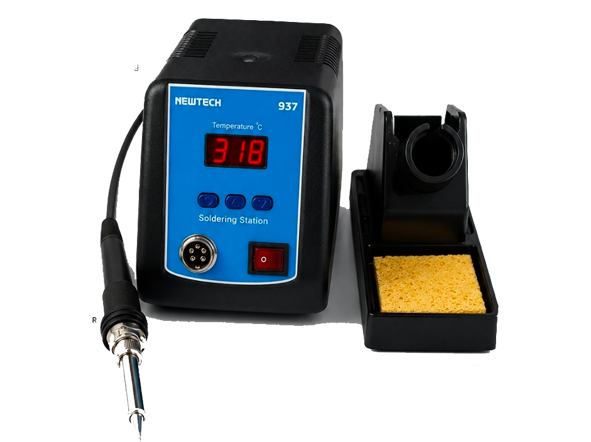

| NEWTECH 937 Soldering Station Specifications | |
|---|---|
| Model No. | 937 |
| Temperature Range | 50–450°C / 180–480°C |
| I/P Voltage | 190–270 VAC |
| O/P Voltage | 24 VAC |
| Max Power | 90 / 100 / 120 Watts (Optional) |
| Time to Temperature Rising from Ambient | 350°C in 25 Seconds |
| Heater Type | Alumina Ceramic |
| Tip to Ground Resistance | < 0.2 Ohms |
| Tip to Ground Potential | < 2mV |
| Auto Sleep Function | Yes (Optional) |
| Temperature Lock Mode | Optional |
| Application | General / PV Module Soldering and High Mass Components |
